Tough Tank Oil Storage Tanks



For additional Information download pdf file here.

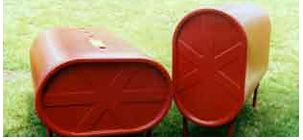

Highland's TOUGHTANK is engineered to withstand unexpected internal pressures. The TOUGHTANK is manufactured to minimize the chance of rupture due to improper filling techniques, faulty equipment, or a clogged vent

In tests and actual use, Highland's TOUGHTANK withstood internal pressures more than 20 times greater than normal operating conditions.*

Highland 12 gauge TOUGHTANKS are available in 137, 275 and 330 gallon capacities and are UL-80 labeled for fuel oil use. A UL-142 label is available on request. For added security, the 275 and 330 gallon TOUGHTANKS are also available in double-wall construction.

Patented Design

Highland's TOUGHTANK features a uniquely designed head, stamped to form a U-shaped ridge around the tank's perimeter. When assembled, the U-shaped flange fits tightly against the interior tank wall to form a lap joint. A fillet weld then secures the head into position

Significantly stronger by design, this new configura–tion also serves to protect the weld from external damage during transportation and installation

* Warning: Operation of a TOUGHTANK in excess of normal operating pressure (2.5 psi) may cause permanent distortion

UL Approved for Indoor or Outdoor Use

Highland’s 12 Gauge TOUGHTANK oil storage tanks bear a UL 80 Label for indoor or outdoor use in accordance with NFPA 31 which permits a UL 142 Label upon request. TOUGHTANKS are painted with primer and are available in finish colors upon request

Standard Features:

  • 12 Gauge All-Steel Construction

  • Convenient Handle on each Head

  • Protective Primed Finish

  • UL Labeled designed and fabricated for storage of heating oil
